About the product

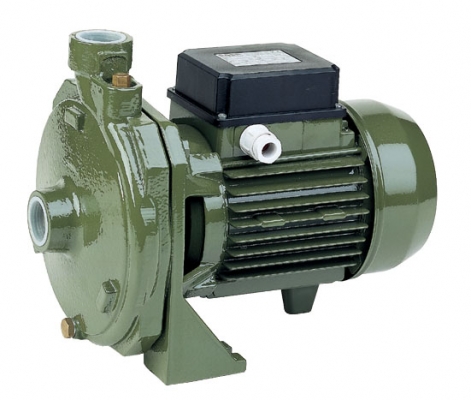

Electric Single Impeller Centrifugal pump CMP76
Industrial water supply, pressurized water using pressure vessels (autoclaves), horticultural and agricultural irrigation, civil and domestic water transfer applications.

Technical details

• Pump body and motor support in cast iron or cast aluminum alloy. Pressed brass impeller or thermoplastic resin
• Mechanical seal in carbon/ceramic
• Rotor shaft fitted with seal for life bearing'
• Totally enclosed fan cooled motor (TEFC)
• Single phase motors with a built in thermal overload protection on request, the capacitor is permanently in circuit
• Motor protection to IP44 (available in IP55 upon request)
• Winding Insulation to class B (for motors of size 63), F (for other sizes)
• Standard Voltage: 230V-50Hz sinqle phase, 230/400V- 50Hz three phase
• Other voltages and frequencies available upon request
• Maximum Temperature of pumped liquid -15°C to +70°C
• Maximum ambient temperature 40°C
• For higher temperatures please contact the sales office
• Maximum working pressure 9 bar
• The tolerances of the hydraulic features are according to UNI / ISO 2548-Class C, Appendix B, electric features according to C.E.I
• The working features listed in the catalogue are based on continuos service for clear water with a specific weight of 1000 kg /m3
• Manometric suction lift of 8 meters with a foot valve, for a suction lift of above 5 meters it is advisable to install the suction pipe with a internal diameter larger than the pump inlet

Technical information

Head up /H/:30-21 m
Flow rate /Q/: 0-100 l/min
Power: 0.55 - 0.75 kW
Standart voltage: 230V
Inlet/Outlet: 1"
Weight: 13.8 kg

Attached files

• Electric single impeller centrifugal pumps CMP76 (~405 KB)
